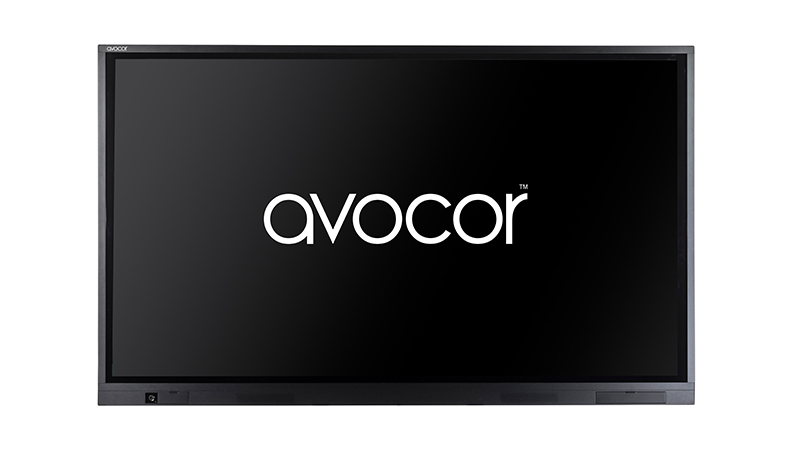

Avocor E10 series

ACCURATE. SUPERIOR. AFFORDABLE.

The cutting-edge lightweight LED technology of the Avocor E series 65”, 75″ and 86″ interactive display combines first-to-market 2mm optically bonded glass with a 4K IR interactive display. The E series delivers ultra-fast 20-points of touch using Avocor Intelligent Touch, the functionality to insert an OPS unit via the OPS slot as well as the Connect and Control bar at the bottom of the screen.



Delivering the ultimate experience for usability and collaboration.

Shipping in 3 sizes, 65”, 75” and 86”, the E series incorporates Avocor Intelligent Touch technology, delivering up to 20 ultra-fast touch points, instantly creating an environment that inspires collaboration.

The E series is the first interactive display on the market to offer ultra-thin, optically bonded glass. As there is no gap between the glass and actual display, the display delivers a pixel-perfect touch experience with superior writing accuracy and pen performance.

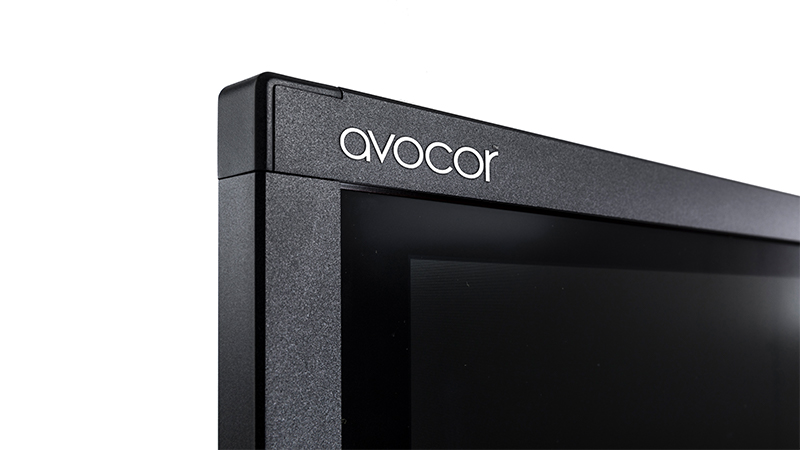

The new Avocor E series interactive display represents the very latest in lightweight LED technology with an exceptionally slim bezel design, creating an aesthetically pleasing finish on a lightweight display with no heavy duty wall mounting needed. Bringing simplicity to the front of the display, you can easily switch input sources and access content from USB drives through the front-facing USB connections all via the Connect and Control Bar. The E series display also offers 30w of forward-facing speakers with custom built housing delivering a crisp audio performance for all to hear.

Optimised for Windows 10, the E series includes edge swipe functionality that gives a true tablet-like experience on a large format display while the anti-glare, anti-fingerprint glass delivers an exceptionally smooth, natural writing experience. Object recognition precisely recognises the size of the object touching the display, transitioning quickly between pen, finger and palm, enhancing the user experience. With the very latest in lightweight LED technology, the E series has an exceptionally slim bezel and 4K screen resolution that is visually stunning and the 30W, forward-facing speakers produce crisp, clear audio performance.

PRODUCT KEY FEATURES

4K IR display with 2mm optically bonded glass

4K IR DISPLAY WITH 2MM OPTICALLY BONDED GLASS

With 2mm optically bonded glass into a 4K IR display, the Avocor E7510 display boasts increased brightness and contrast to produce a beautiful stunning visual experience. Uniquely, there is no gap between the glass and the display, meaning that the parallax is eliminated, giving users a pixel-perfect touch experience.

Ultra-fast 20-points of touch

ULTRA-FAST 20-POINTS OF TOUCH

With ultra-fast 20-points of touch using Avocor Intelligent Touch, the E7510 enables multiple users to collaborate on the display while the superior writing capabilities and simultaneous annotation produce an inspiring collaborative environment.

Optimised for Windows 10

OPTIMISED FOR WINDOWS 10

With anti-glare and anti-fingerprint glass providing a writing experience that is as natural as putting pen to paper. Enjoy the tablet-like experience of the E7510, optimised for Windows 10 and includes edge swipe functionality.

Pen Aware functionality with a fine-tip passive pen

PEN AWARE FUNCTIONALITY WITH A FINE-TIP PASSIVE PEN

Pen aware functionality and object recognition identifies the size of the object touching it, transitioning easily between a pen, finger or palm to deliver a smooth collaboration experience while the 3mm fine-tip passive pen delivers an incredible inking and writing experience.

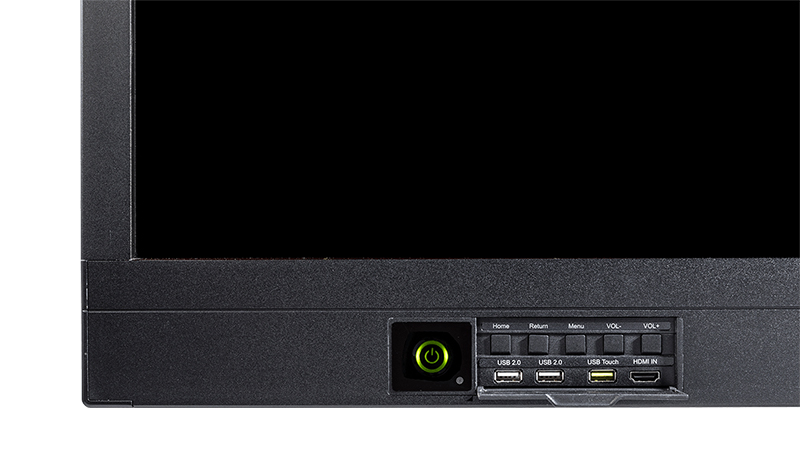

Control bar

CONTROL BAR

With 30W, front facing speakers built with custom housing, the E7510 delivers a crisp audio experience while the Control bar on the front of the display enables users to switch seamlessly between input sources with no need to use the remote control.

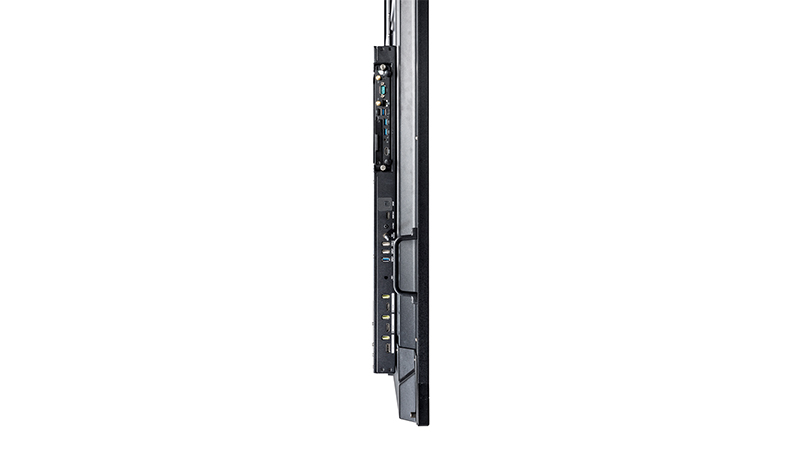

Connectivity Options

CONNECTIVITY OPTIONS

The E7510 includes a variety of connectivity options, including 3 x HDMI, 1 x DisplayPort, 1 x HDMI Out, 1 x USB Hub and room control. The HDMI Out connection is ideal for dual display set up and a Room automation system can be used via the RS-232 port.

DISPLAY

Diagonal Size (Inch) 65", 75", 86"
Backlight Direct-lit LED
Aspect Ratio 16:9
Resolution 4K, 3840 x 2160 @ 60Hz
Response Time 8 ms
Brightness 370 (cd/m2)
Contrast Ratio 4000:1
Viewing Angle 178° / 178°
Supported Colours 30-bit Deep Colour
Display Orientation Landscape

TOUCH SYSTEM

Interface 5 x USB-A
Touch Up to 20 Point Avocor Intelligent Touch
Glass 2mm Optically Bonded Anti-Glare, Anti-Finger Print Glass
Supported Operating System Windows 7 / 8 / 10; Mac OSX; Linux

AUDIO

Built-in Speakers 8Ω / 2 x 15W – Forward Facing

CONNECTIVITY

Front Connections 1 x HDMI 1.4, 1 x USB-A Touch, 2 x USB HUB 2.0
Side 2 x HDMI 2.0, 1 x DisplayPort 1.2a, 3 x USB-A Touch, 1 x USB Hub 2.0, 1 x HDMI Out
Rear 1 x HDMI 1.4, 1 x USB-A Touch, 1 x LAN In Ethernet (RJ-45), 1 x LAN Out Ethernet (RJ-45), 5V 2A AC Power Jack
Audio 1 x 3.5mm Audio Out, 1 x Optical (SPDIF)
Control 1 x RS-232

Warranty

5 years RTB

THE POSSIBILITIES ARE ENDLESS

Additional functionalities can be added onto this display with the OPS slot that complies with the Intel’s international standard for Slot in PCs and works seamlessly with Avocor’s range of OPS units. The OPS slot also enables users to add a PC which conforms to their own settings for firewall and security.

WEALTH OF CONNECTIVITY OPTIONS

Boasting a range of digital connectivity options, the E series provides a wide range of options to connect 3rd party devices. These include 3 x HDMI, 1 x DisplayPort, 1 x HDMI Out, 1 x USB Hub and room control. The HDMI Out connection is ideal for dual display set up and a Room automation system can be used via the RS232 port.

INCLUDED WITH YOUR E SERIES PURCHASE

Avocor Note by Nureva is a whiteboarding application designed to enable every user to create professional looking content.

Qwizdom OKTOPUS software is an interactive teaching tool design to enhance student learning with over 50 subject specific tools for a variety of curriculum topics and includes 5 Qwizdom Notes+ licences valid for 1 year.

A 3 year subscription to Ximbus by Qwizdom, a convenient & easy-to-use that allows for Lesson Preparation & Presentation, Collaborative Whiteboarding and Integrates with Google G-Suite.
