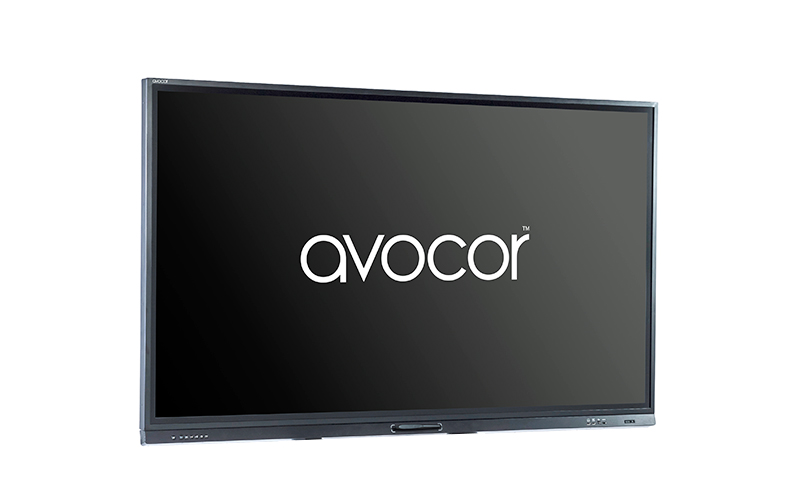

Avocor F50 series

INNOVATIVE. AGNOSTIC. UNIQUE.

The F50 series of interactive, collaborative displays represents the very latest in touch screen technology innovation. Built on an entirely new platform, the F50 comprises a beautiful, sleek, lightweight design and offers seamless integration and compatibility with the Unified Communications tools already in use within your organisation. Enjoy a superior touch and white-boarding due to the dramatically thin, next-generation InGlass™ from FlatFrog touch technology while the 2mm optically bonded glass delivers a smooth, accurate and pixel perfect user experience.

DRAMATICALLY FASTER PERFORMANCE

The Avocor F50 series utilises the very latest InGlass™ technology combined with optically bonded glass and includes a new, ultra-fast inking touch performance that supports up to 20 individual touch points and 4 passive pens, enabling a high performance, realistic writing experience that is as natural as putting pen to paper while object recognition easily distinguishes between pen, finger and palm.

The perfect partner for the latest UC software tools, including Zoom Rooms and the Microsoft 365 ecosystem with Teams, Skype for Business and Whiteboard, the Avocor F50 series shows Windows at room scale.

PRODUCT KEY FEATURES

Ultra-fast 20-point touch

ULTRA-FAST 20-POINT TOUCH

Using the latest generation, InGlass touch technology from FlatFrog, the F50 series delivers a highly superior writing experience that is incredibly fast and accurate. The display responds quickly to user interaction with up to 4 passive pens or up to 20 points of simultaneous touch.

2mm Optically bonded glass

2MM OPTICALLY BONDED GLASS

Built with cutting-edge, protective glass with no parallax gap between the glass and the display, providing users with a pixel perfect touch experience. Enjoy the latest in 4K LCD technology that contributes to a lighter, thinner display that is incredibly energy efficient.

Optimised for Windows 10

OPTIMISED FOR WINDOWS 10

The F50 includes a built-in Windows swipe bar which has been optimised for Windows 10, delivering a tablet-like experience on a large format display.



Latest Intel OPS slot

LATEST INTEL OPS SLOT

The OPS slot supports HDMI 2.0 allowing for 4K content to be run at 60Hz, while the Intel OPS (Open Pluggable Specification) allows for a module PC to be added easily to the display without cables.

Inductive key pad for control

INDUCTIVE KEY PAD FOR CONTROL

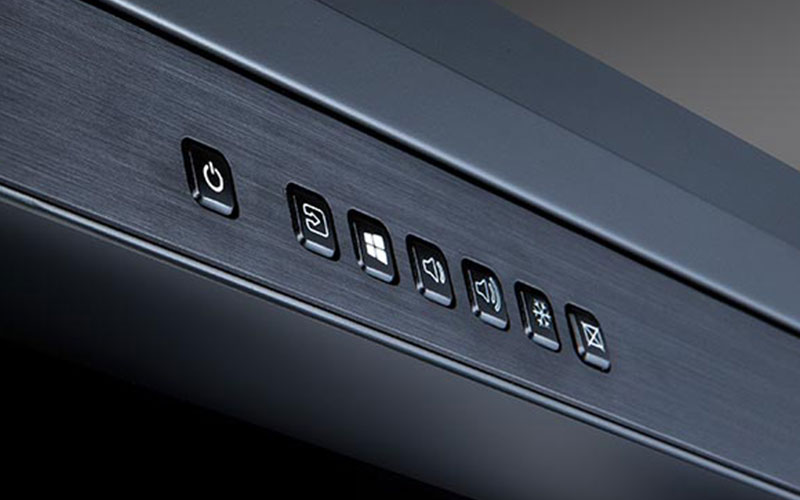

Designed with ease of use in mind, the Advanced Connect and Control Bar features back-lit inductive key pads that complement the beautiful, sleek design of the F50 series.

Wireless Screen Sharing

WIRELESS SCREEN SHARING

The control bar also features a Wireless Screen Sharing button, enabling users to switch seamlessly to the dedicated HDMI input for 3rd party devices.



Integrated audio conferencing capability

INTEGRATED AUDIO CONFERENCING CAPABILITY

A high-quality, front-facing soundbar module is included in the F50, ensuring that the display provides a crystal-clear audio experience, while the active microphone array allows the display to connect with a variety of Unified Communications based software, delivering the ultimate audio experience.

Pen aware functionality

PEN AWARE FUNCTIONALITY

The fine-tip stylus delivers extremely accurate writing and annotations on the display, while object recognition means that the display can easily distinguish between pen, finger and palm, delivering a smooth touch experience.

DISPLAY

Diagonal Size (Inch) 75
Backlight Direct-lit LED
Aspect Ratio 16:9
Resolution 4K, 3840 x 2160 @ 60Hz
Response Time 8 ms
Brightness 370 (cd/m2)
Contrast Ratio 4000:1
Viewing Angle 178° / 178°
Supported Colours 30-bit Deep Colour
Display Orientation Landscape

TOUCH SYSTEM

Interface 3 x USB-B 2.0, 1 x USB-B 3.0
Touch Up to 20 Point Avocor InGlass™ Intelligent touch, Supports 4 x fine-tip stylus
Glass 2 mm Optically Bonded, Anti-Glare, Anti-Fingerprint Glass
Supported Operating System Windows 7 / 8 / 10; Mac OSX*; Linux*

AUDIO

Built-in Speakers 2 x 15W Forward Facing – Each module: 4 x 32mm Drivers & 2 Passive
Microphone Array Yes – 4 microphones

CONNECTIVITY

Standard IO 3 x HDMI 2.0, 1 x HDMI 2.0 for Dedicated Wireless Presentation Device, 1 x DisplayPort 1.2a, 1 x VGA, 2 x USB-A 3.0 Hub, 1 x USB OPS 3.0, 1 x HDMI Out, 1 x USB Service port
Guest IO 1 x HDMI 2.0, 1 x USB-B Touch, 1 x USB-A 2.0
Audio 1 x 3.5mm Audio Out, 1 x 3.5mm Audio In, 1 x Optical (SPDIF)
Control 1 x RS-232, 1 x LAN In Ethernet (RJ-45)

Warranty

5 years RTB

AS USUAL, IT’S A TEAM PLAYER

Like all Avocor interactive displays, the new F50 series is truly agnostic, reflecting the company’s dedication to agnosticism and interoperability across our entire portfolio. The Avocor F50 works seamlessly with Unified Communications hardware and software solutions from Zoom Room to Skype for Business, Logitech to Huddly collaboration cameras, meaning the F50 integrates with existing equipment as well as potential future technology upgrades.
