WCD Collaboration Display by Avocor

TAKE “ME WORK” TO “TEAMWORK”

Together with Microsoft, famous for introducing the Surface Hub,  Avocor is building WCD Collaboration Displays to enhance and accelerate teamwork, increasing productivity and collaboration in the workplace. The new collaboration displays are fully compatible with Windows 10 and deliver the power and productivity of Office 365 and Microsoft Teams at room scale.

FEATURE RICH AND FUTURE-PROOF

WCD Collaboration Displays by Avocor feature integrated AV with a premium conference camera, stereo speakers, far-field microphones, fine-tipped stylus with eraser and will easily connect to any Windows 10 PC via a single Type C cable. The cable transmits 4K video, touch, USB control, internet and power for fast frustration-free use. Smart switching makes multiple-user collaboration fast and simple. In addition to being teamwork devices, WCD Collaboration Display by Avocor also include built-in sensors that connect to the Azure Digital Twins so facility managers can utilize the environmental data they collect to make real-time adjustments and future room and investment planning.

Get meetings started, quickly

GET MEETINGS STARTED, QUICKLY

Incorporating a single USB-C cable that intelligently connects a Windows 10 PC to the display, the cable delivers ethernet, audio, video and power. No more struggling to find image sources or connect additional cables, making starting meetings an instant and frustration-free user experience.



Unified communication & collaboration

UNIFIED COMMUNICATION & COLLABORATION

The WCD Collaboration Display by Avocor is an all-in-one, interactive solution that combines an integrated, high-quality conference camera, stereo speakers and an active, far-field microphone array to create a video collaboration environment.

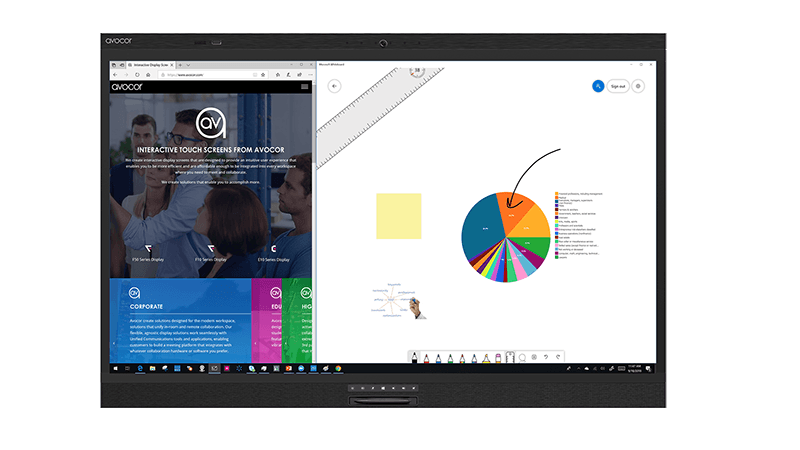

Intuitive writing experience

INTUITIVE WRITING EXPERIENCE

The WCD Collaboration Display by Avocor is available as a 65" display solution and delivers 4K screen resolution utilising that latest in FlatFrog touch technology to deliver up to 20 x individual touch points, delivering an exceptionally smooth and responsive touch experience that is pixel-perfect.



Increases security and confidentiality

INCREASES SECURITY AND CONFIDENTIALITY

Because the WCD Collaboration Display by Avocor is an extension of the connected PC device, the security is locked down to the device connected and ensure nothing personal is left on the WCD. This increases security and confidentially when working on the display and leaving the meeting space.

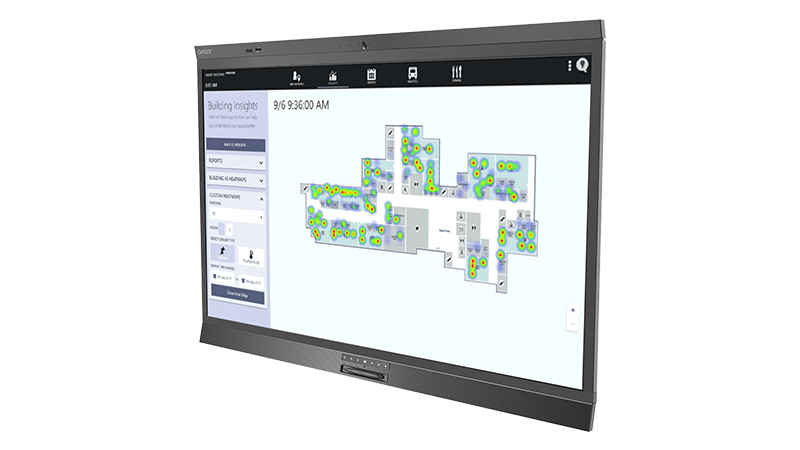

Internet of Things sensors

INTERNET OF THINGS SENSORS

A unique feature of the WCD Collaboration Display by Avocor is the built-in sensors which connect to the Microsoft Azure Digital Twins platform, providing environmental data such as room temperature, light levels and presence detections to the Azure platform, and the display is Azure certified.



DISPLAY

Diagonal size (inch) 65"
Backlight Direct LED
Aspect ratio 16:9
Resolution 4K, 3840 x 2160 @ 60Hz
Brightness 370 (cd/m2)
Viewing Angle 178/178
Supported colors 30-bit deep color
Display orientation Landscape

TOUCH SYSTEM

Interface 1 x USB Type C, 3 x USB-B 3.0
Touch Up to 20-point InGlass™ Intelligent Touch, Support up to 4 x fine-tip stylus with eraser, Simultaneous pen and touch*
Glass 2mm optically bonded, anti-glare, anti-fingerprint glass
Supported operating system Windows 7/8/10, Mac OSX, Linux

AUDIO

Built-in speakers Stereo – 2 x 30W
Microphone array 4 x beam-forming, linear array, far-field, SSP, AEC, ANS, DRC, EQ

CAMERA

Integrated conference camera 6 element aspherical glass lens, Full HD Sony CMOS, AE/AWB,AF,AGC,WDR, super-wide 120° FoV

CONNECTIVITY

Standard I/O Type C (DisplayPort Alt mode, 4K 60Hz, USB HID, PD power, ethernet), 1 x DisplayPort, 2 x HDMI,
3 x USB-B 3.0, 1 x USB-A 3.0 HID
Audio 1 x 3.5mm audio out, 1 x optical (SPDIF)
Control 1 x RS-232, 1 x IR input
Ethernet 2 x RJ-45

WCD FUNCTIONS

Auto-power detection Yes, based on Proximity Sensor
Auto-source detection Yes + Smart Switching
IOT data reporting Yes + adjustable data telemetry interval

Warranty

3 year Advanced Replacement

TAKE TIME BACK INTO YOUR HANDS

Avocor and Microsoft have worked together to create an innovative single-cable solution that immediately and intelligently connects a Windows 10 PC to the display. It allows for the immediate control of the camera and mic for video and audio, as well as providing hard-wire Ethernet connection and power to the laptop. No more struggling with cycling through the source, searching through a sea of connection cables or ports – bringing power cables to meetings or struggling with WiFi and passwords. What used to take 10 minutes and cause undue stressed and distraction is now a seamless, single-cable connection that takes seconds.
